3DMetalWIRE

Machine DESCRIPTION

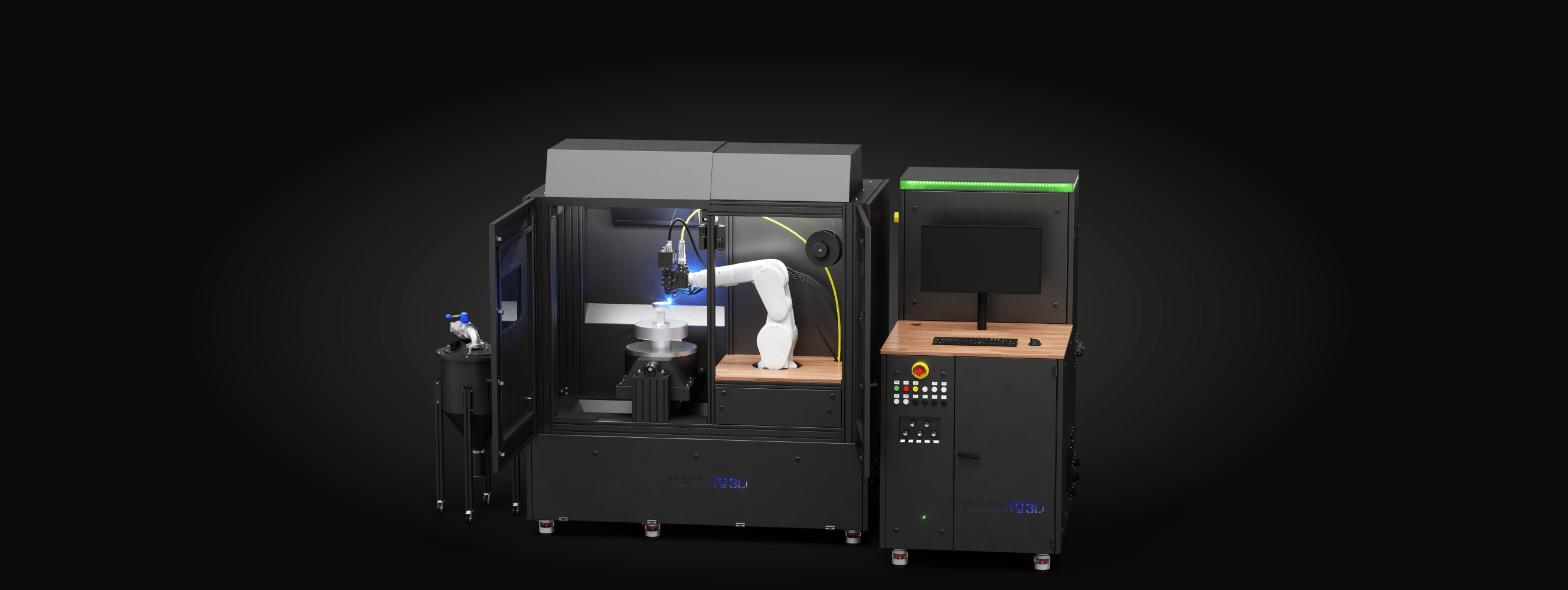

The 3DMetalWIRE is currently in development and extends Aconity’s equipment portfolio to powder free wire-based 3D metal printing. The laser-based system combines a compact machine design with a large build space of Ø 400 mm x H 400 mm, perfectly suited for producing mid-sized AM parts.

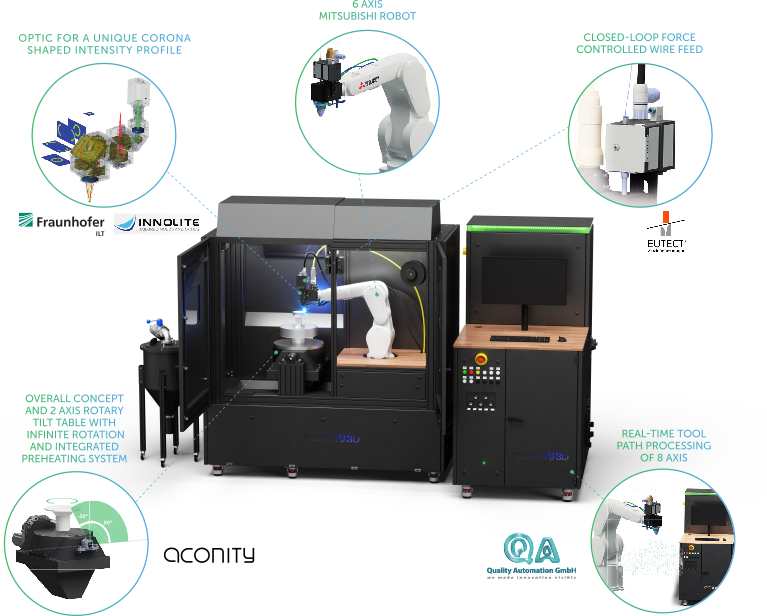

A force-controlled wire feed is enveloped by a shielding gas nozzle and a unique Corona-shaped intensity profile of the laser beam, enabling direction-indipendent material deposition. By processing standardized welding wires, large metal components may be produced at cut costs, facilitated handling and improved quality assurance for truly industrialized manufacturing. Real time control of the 6-axis robot and 2-axis rotary tilt table with infinite rotation allow for upmost flexibility in terms of part complexity, whereas a powerful prehaeting of up to 500 °C reduces internal stresses and extends the scope of applicable materials.

Technical SPECIFICATIONS

The 3DMetalWIRE is currently under development and extends Aconity´s equipment portfolio to powder free wire-based 3D metal printing. The laser-based system combines a compact machine design with a large build space of 400 mm x H 400 mm, perfectly suited for producing mid-sized AM parts.

Build space

Ø 400 mm x H 400 mm

Laser Confi­guration

Single Mode Fiber 500 W / 1500 W

Optical configuration

Corona-shaped intensity profile with coaxial wire feed for direction-independent material deposition

Mechanical configuration

6 axis robot
2 axis rotary tilt table with
infinite rotation

Preheating temp / build space

500 °C / Ø 400 mm x H 400 mm

Wire feed

Close-loop Force Control

Wire diameter

0.4 - 0.8 mm

Planned materials

Aluminum, Stainless Steel, Inconel and Titanium

Inert gas type / pressure

Argon 4.6 / 6 bar
Nitrogen / 6 bar

Inert gas supply

Coaxial

Robot control

Realtime tool path processing

Machine Dimensions (W x D X H)

3000 mm x 1500 mm x 2200 mm

Machine weight w/o powder

1450 kg

This project is funded by BMBF

This research and development project is / was funded by the German Federal Ministry of Education and Research (BMBF) within the “SME – Innovative: Research for Production” Funding Action (funding number 02P16K6000-02P16K604) and implemented by the Project Management Agency Karlsruhe (PTKA). The author is responsible for the content of this publication.
