Machine DESCRIPTION

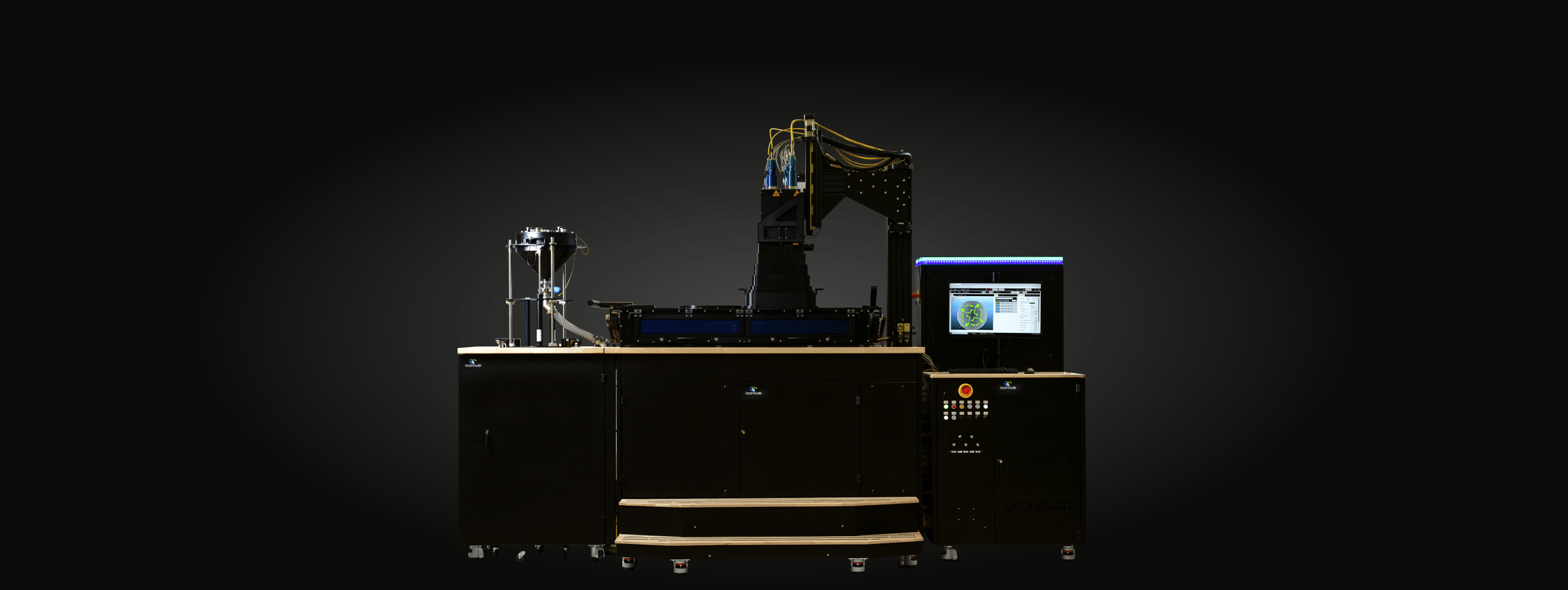

The AconityONE represents Aconity3D’s full-fledged production system. The machine is equipped with a large scale build platform of Ø 400 mm, idealy suited for industrial production of larger parts. The innovative swiveling mechanism allows for fast material changes whilst granting access to all significant technical components.

As for all Aconity systems, the AconityONE allows access to all relevant process parameters and can be modularly equipped with a preheating device, process monitoring or changed laser configuration for maximum customer benefit.

The fully automated powder refilling system in combination with Aconity’s own sieving station AconitySIEVE further increases productivity at maximum operator safety.

The AconityONE is also available as FOUR-Laser system for further maximized productivity. At this, the AconityONE represents the only machine with a full-overlap of all laser sources onto the complete build area of 400 mm at small laser spot sizes of ~ 80 µm. This is enabled by Aconity’s own developed 3D scan head technology.

Technical SPECIFICATIONS

The AconityONE represents Aconity3D's full-fledged production system at maximum flexibility.

Build space

Ø 400 mm x H 400 mm /
Ø 200 mm x H 400 mm

Laser Confi­guration

Up to 4x Single Mode
400 W / 500 W / 700 W / 1000 W

Optics confi­guration / Spot size

F-Theta / 90 μm
3D Scanning / 80 – 500 μm

Process monitoring options

Coaxial pyrometer
Coaxial high speed CMOS

Preheating temp / build space

200 °C / Ø 400 mm x H 300 mm
500 °C / Ø 350 mm x H 300 mm
800 °C / Ø 200 mm x H 300 mm

Layer thickness

Down to 10 µm

Max scan speed

12 m/s

Inert gas type / pressure

Argon 4.6 / 6 bar
Nitrogen / 6 bar

Inert gas consumption

< 5 l/min during process
< 30 l/min during purging

Residual oxygen content

< 100 ppm

Pressurized air type / pressure

ISO 8573-1:2010 [1:4:1] / 6 bar

Pressurized air consumption

< 50 l/min

Machine Dimensions (W x D X H)

3000 mm x 1700 mm x 3000 mm

Machine weight w/o powder

1600 kg
