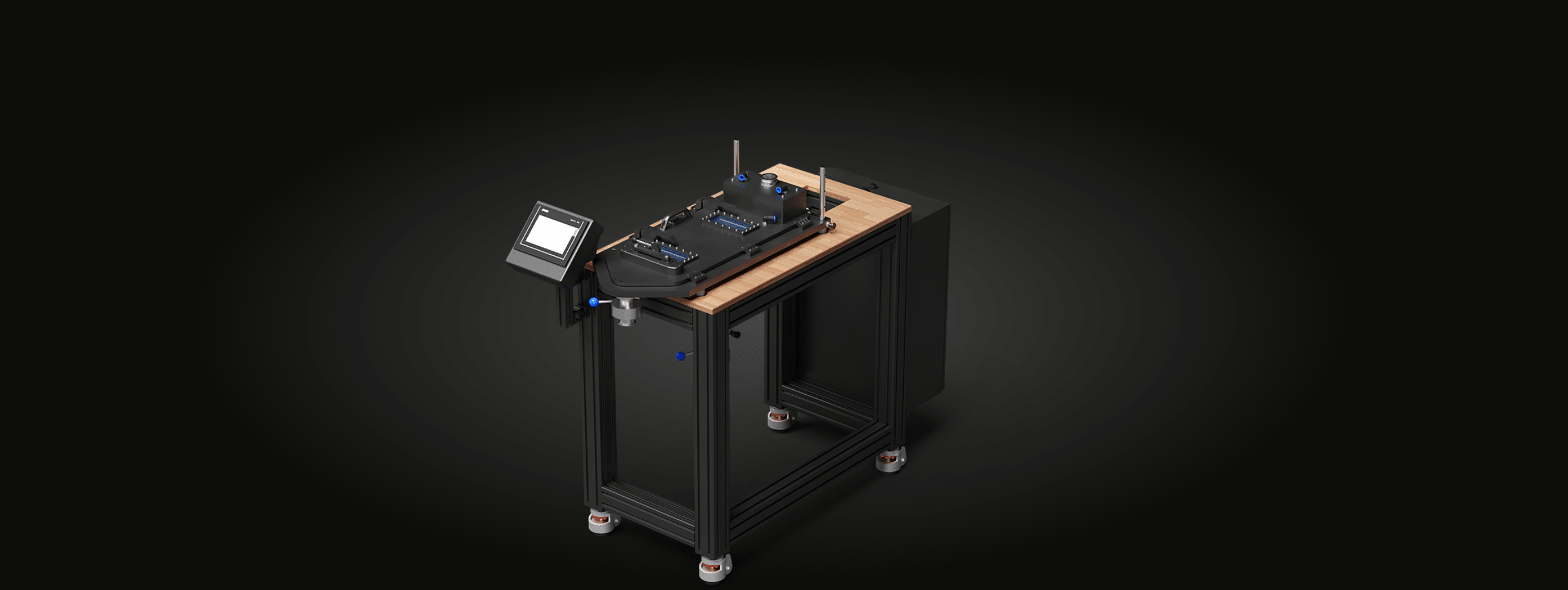

AconitySIEVE

Machine DESCRIPTION

The AconitySIEVE extends our equipment portfolio towards powder preparation for the LBM process. The sieving equipment is designed for fast and precise processing of powder material.

The ultrasonic generator with variable amplitude enables high throughput rates at low noise generation.

The system is easy to clean and can be quickly adapted to different powder materials.

The scope of applicable materials can be maximized with different mesh sizes, an optional inertization unit and flexible handling system.

Technical SPECIFICATIONS

AconitySIEVE extends Aconity's device portfolio towards powder preparation for the L-PBF process. The sieving unit is suitable for fast and precise classification of powder materials - also under inert gas atmosphere.

Sieving area

200 mm x 535 mm

Mesh size

Single Mode Fiber 500 W / 1500 W

Noise level

< 60 dB

Powder throughput

Aluminum powder: 100 kg/h
(25 - 63 µm) with 90 µm mesh

Inert gas type / pressure

Argon 4.6 / 6 bar
Nitrogen / 6 bar

Inert gas consumption

< 5 l/min during process

Touchscreen controlled PLC

Variable sieving cycles
(amplitude / time)

Residual oxygen content

Adjustable, min. 100 ppm

Machine Dimensions (W x D X H)

600 mm x 1050 mm x 1100 mm

Machine weight w/o powder

100 kg
