Machine DESCRIPTION

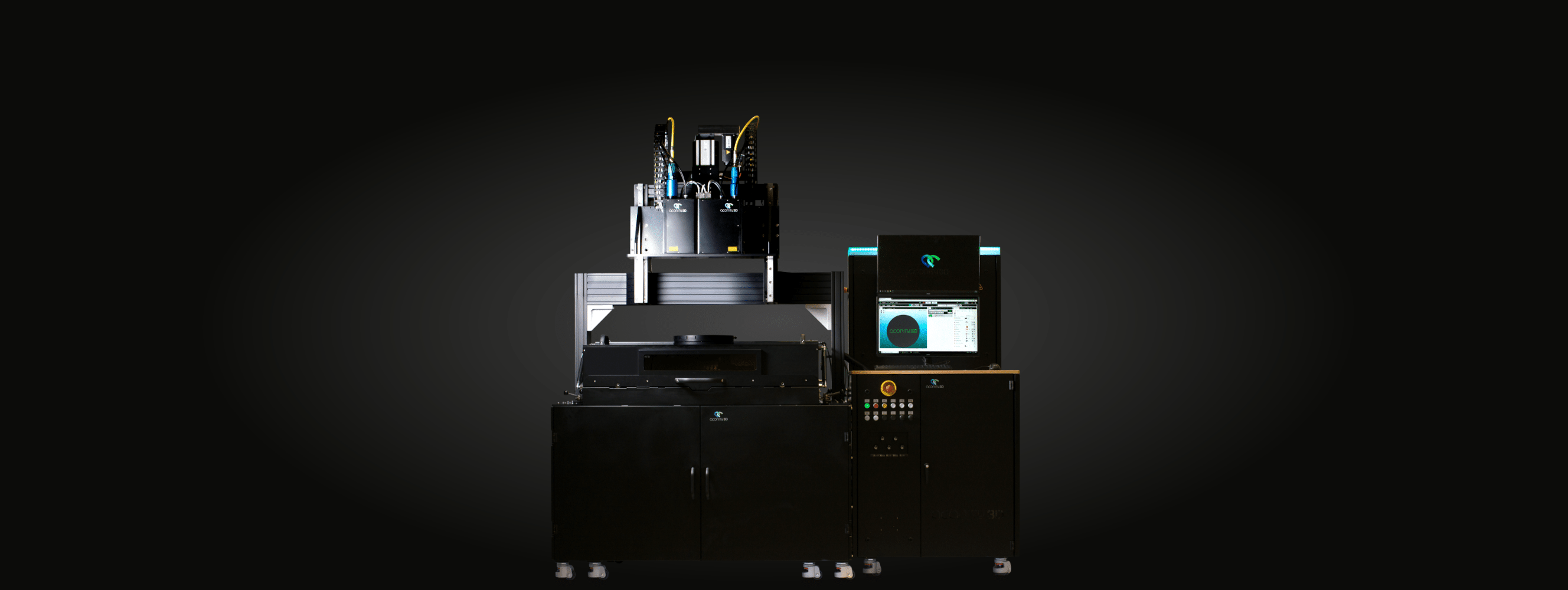

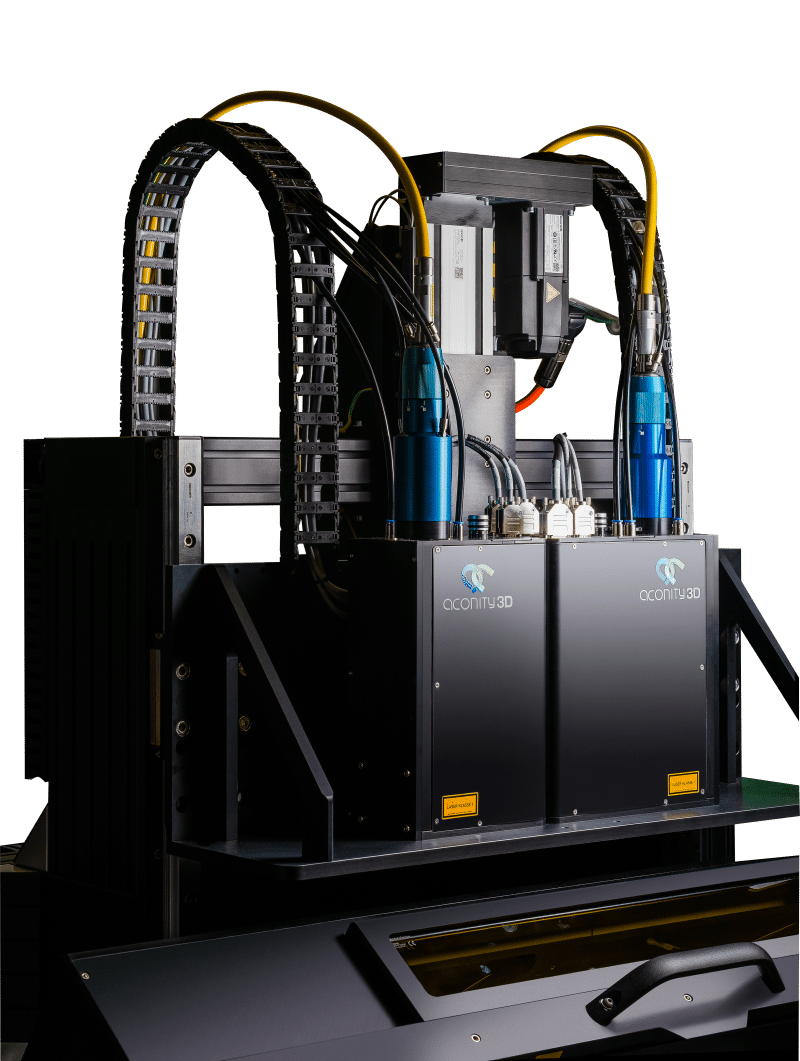

The AconityMIDI+ represents Aconity3D‘s newest machine concept for efficient industrial L-PBF application. The exchangable process chamber allows for parallelized setup times yielding decreased part costs. For maximum material flexibility and quality assurance, high temperature preheating of up to 1000 °C and Aconity3D‘s all new process monitoring system are available. The AconityMIDI+ is also available with up to 4 Lasers in the QUATTRO-Laser configuration, further increasing productivity.

As for all Aconity systems, the AconityMIDI+ is equipped with the web-based control software AconitySTUDIO, allowing for remote access to all relevant process parameters and machine components.

The AconityMIDI+ is available with a revolutionary Multi-Material powder depositioning system, allowing for manufacturing of Dual-Metal parts.

Technical SPECIFICATIONS

The AconityMIDI+ is Aconity's newest machine generation, suited for all production applications.

Build space

Ø 250 mm x H 250 mm

Laser Confi­guration

Up to 4x Single Mode
400 W / 500 W / 700 W / 1000 W

Optics confi­guration / Spot size

F-Theta / 80 μm
3D Scanning / 80 – 500 μm

Process monitoring options

Coaxial pyrometer
Coaxial high speed CMOS

Preheating temp / build space

500 °C / Ø 250 mm x H 150 mm
1000 °C / Ø 150 mm x H 150 mm

Powder Deposition

Bidirectional & vibrating

Layer thickness

Minimal 10 µm

Max scan speed

12 m/s

Inert gas type / pressure

Argon 4.6 / 6 bar
Nitrogen / 6 bar

Inert gas consumption

< 5 l/min during process
< 30 l/min during purging

Residual oxygen content

< 100 ppm

Pressurized air type / pressure

ISO 8573-1:2010 [1:4:1] / 6 bar

Pressurized air consumption

< 50 l/min

Machine Dimensions (W x D X H)

2700 mm x 1800 mm x 3000 mm

Machine weight w/o powder

1600 kg

In the News... FIRST-EVER DUAL-METAL PART PRINTED VIA L-PBF

The first multi-material copper/steel part is printed by means of L-PBF on an AconityMIDI+. For that purpose the system is equipped with the optional all-new powder depostion system from Aerosint. The processed material combination was stainless steel (1.4404) and a copper alloy (CuCrZr). More materials will follow shortly.
